Product technical specifications
- Range: battery capacity and approximate range: 468 Wh – up to 140 km
- Motor voltage: 36 V

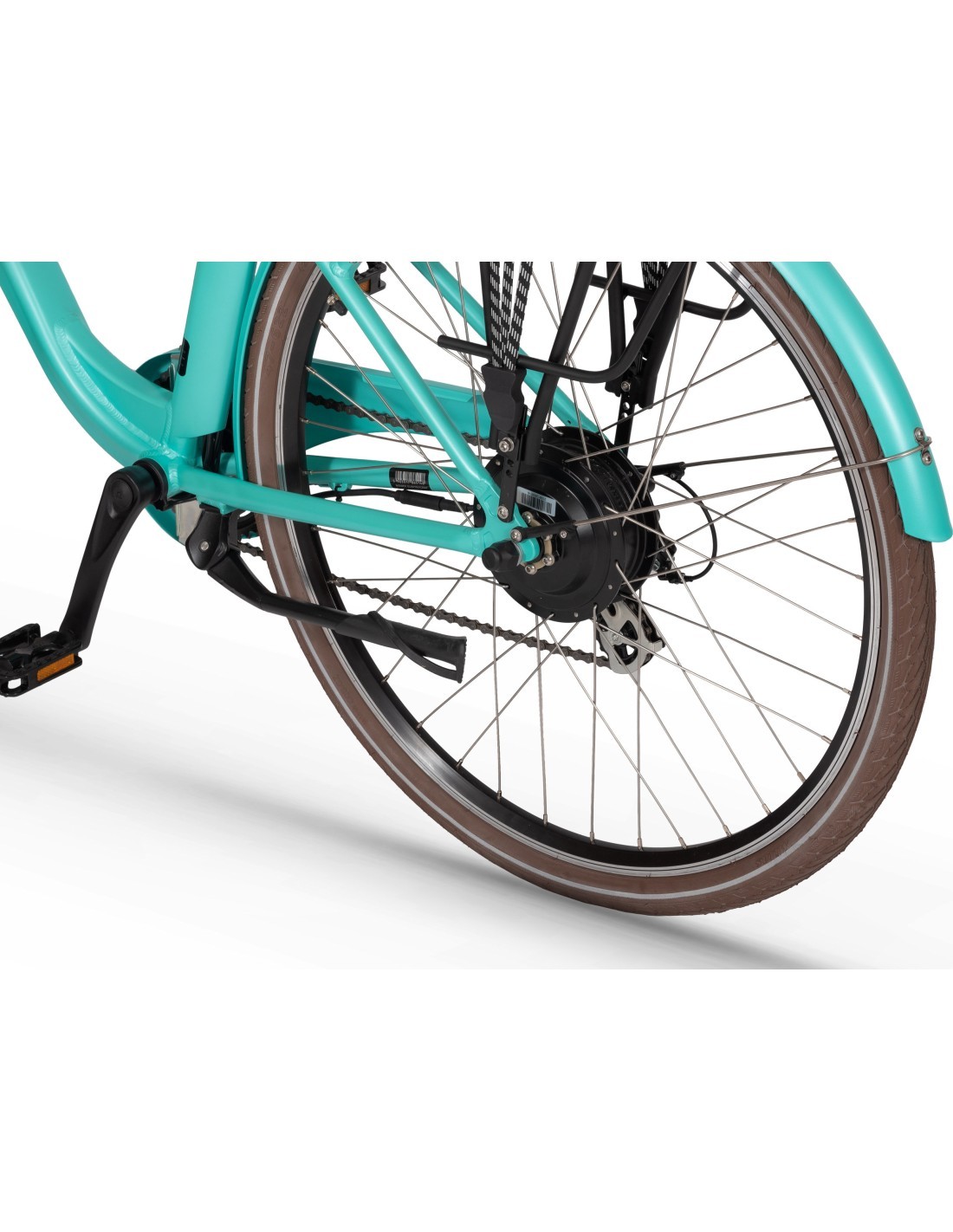

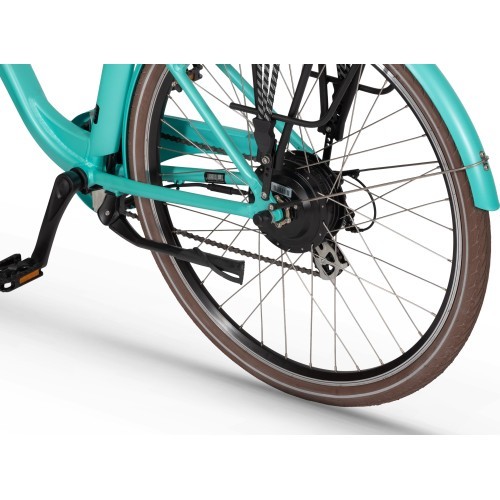

- Motor position: built into the rear wheel
- Maximum motor-assisted speed: 25 km/h, in accordance with EU standard EN 15194
- Torque: 45 Nm
- Motor manufacturer: Bafang
- Power: 250 W
- Battery: integrated into the frame (hidden)
- Approximate battery life: 700 charge cycles
- Battery type: Li-ion
- Battery voltage: 36 V
- Charger: 220–240 V / 42 V / 2 A / type D
- Cell manufacturer: Greenwey
- Smart BMS: intelligent Battery Management System
- Charging: the battery can also be charged after removing it from the bicycle, which is convenient for home charging
- Battery charging time: 6–9 hours
- Frame: aluminium, hydroformed tubes
- Frame size: 17″

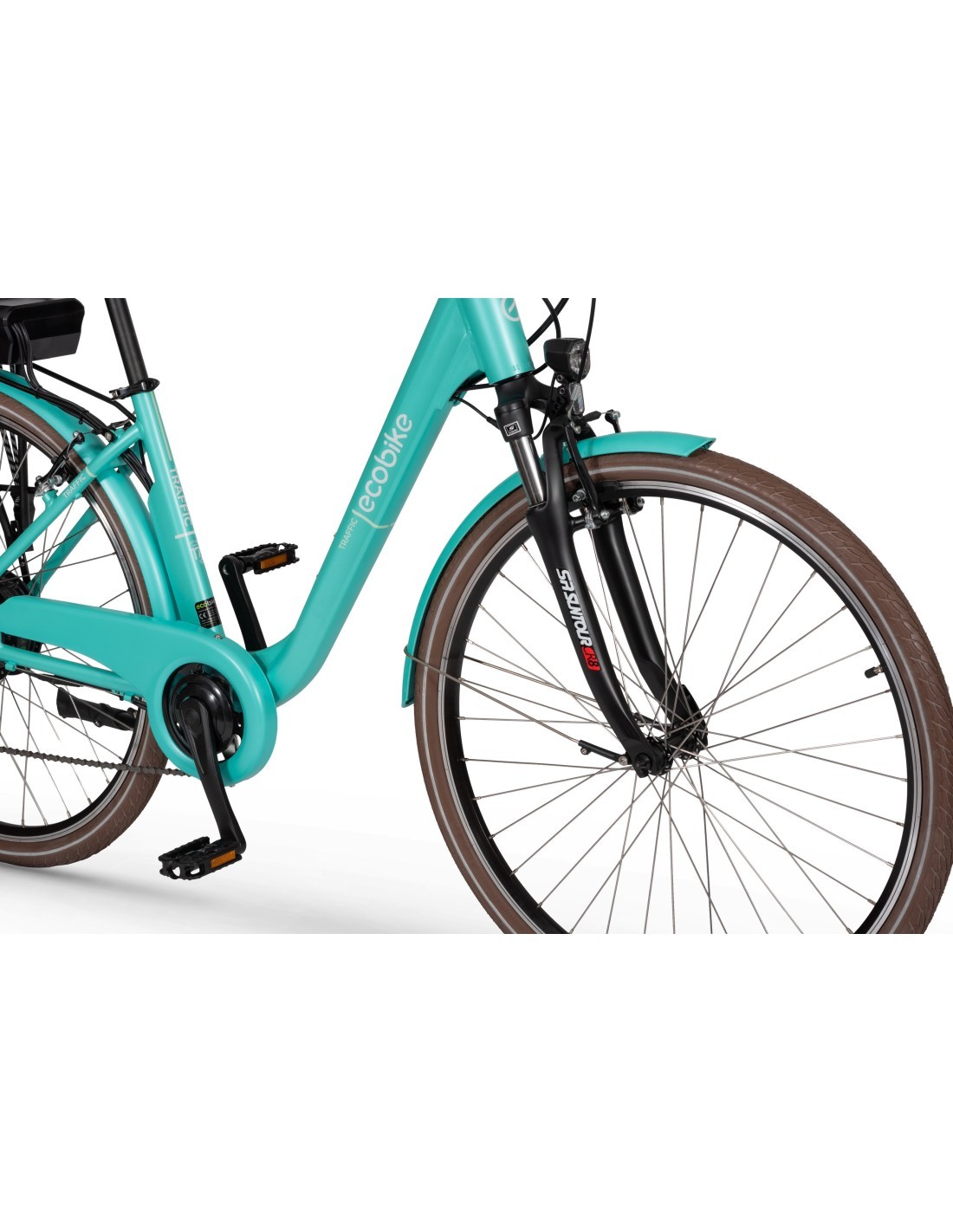

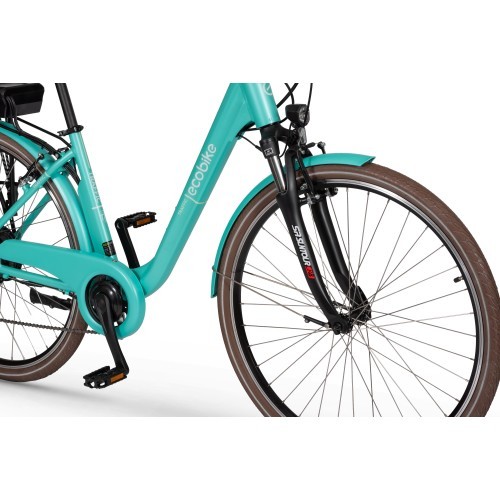

- Fork: SunTour SF14 CR8V P, 63 mm travel
- Brakes: Promax TX-117, V-brake
- Chain: KMC Z7 (114L)
- Front chainwheel: Prowheel PRO A42, 1-speed, 42T, crank length 170 mm
- Rear derailleur: Shimano Altus, 7-speed
- Rear sprocket block: Shimano MF-TZ500, 14–28T, 7-speed
- Bottom bracket: Feimin FP-B902W, 68 x 124 mm

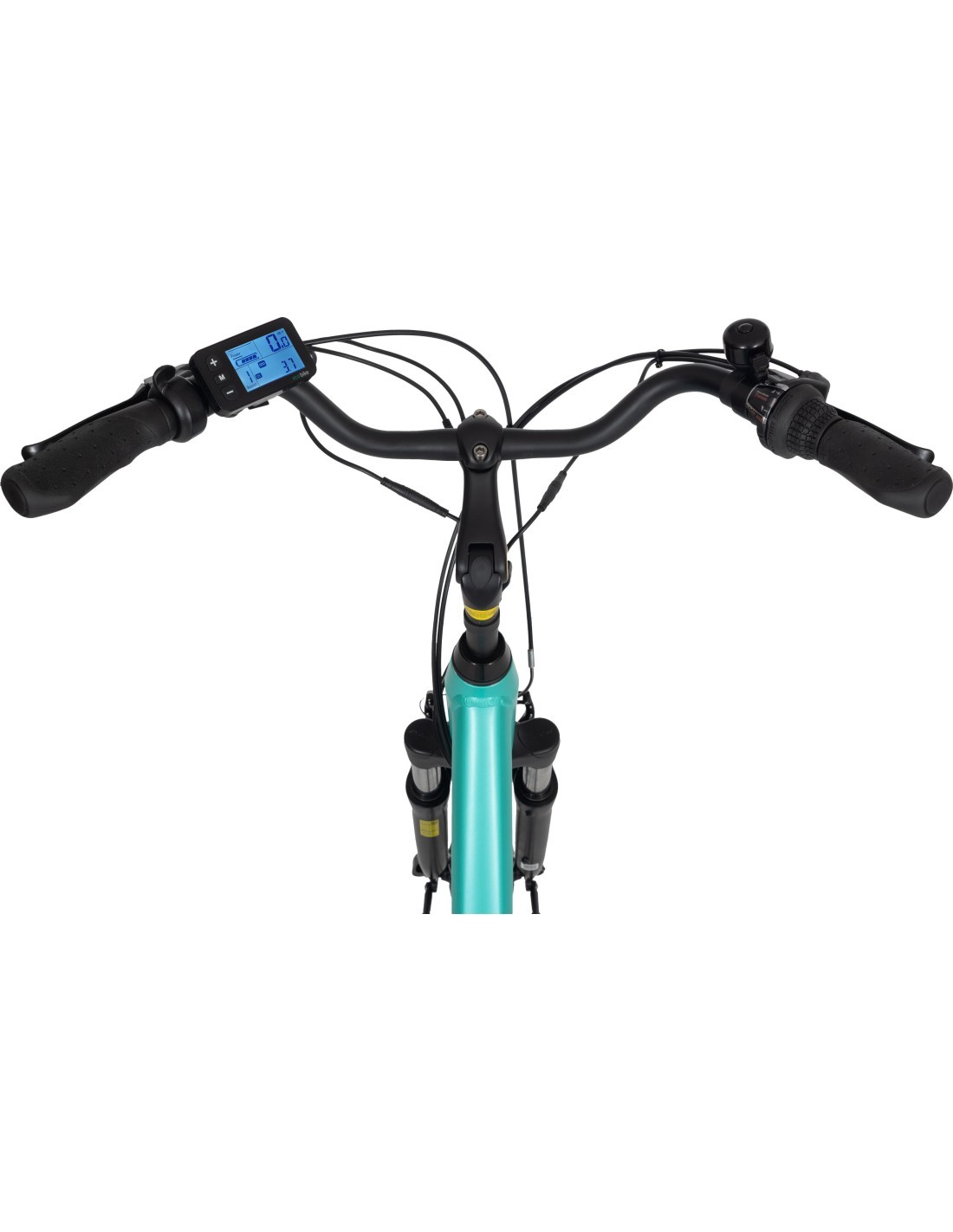

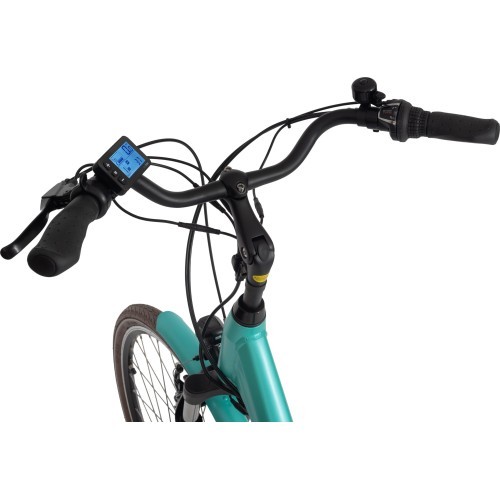

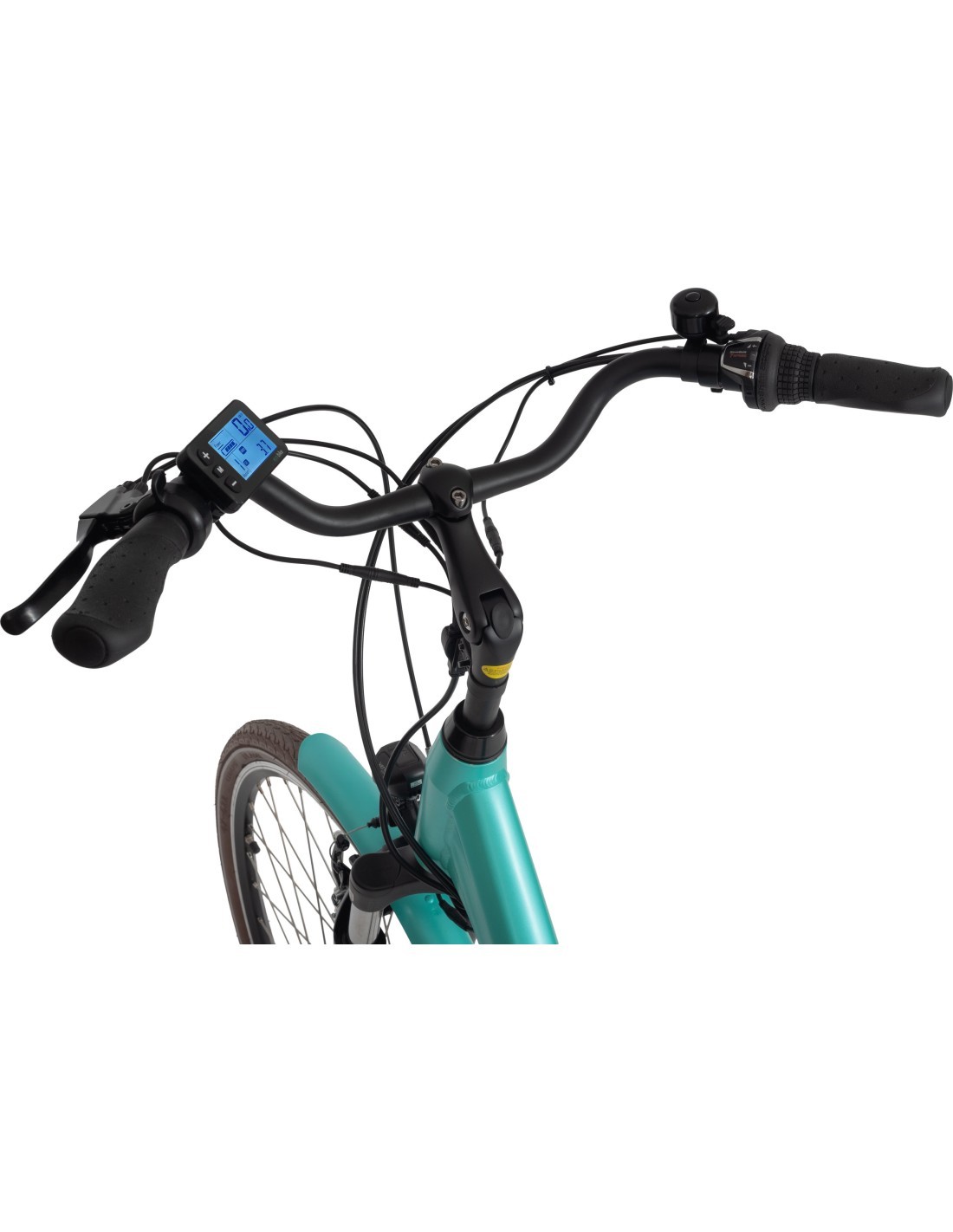

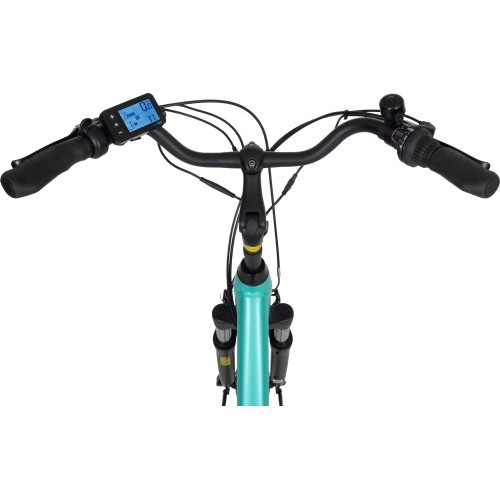

- Handlebar: Promax HB-T320, aluminium, with stem; handlebar ends turned 45° for a more comfortable riding position; diameter at stem clamp (centre) 25.4 mm; length 600 mm
- Stem: Promax MQ-525, aluminium, adjustable
- Hubs: front Joytech 751DSE / rear integrated motor
- Pedals: Wellgo 9/16″ LU-C33
- Rims: STARS 28″ reinforced, triple-wall
- Saddle: Selle Royal Lookin Basic
- Gear shifters: Shimano Tourney Revo, 7-speed
- Tyres: 28″ x 1.75 Rubena Fash
- Weight: 24.1 kg
- Number of gears: 7
- Mudguards: front and rear set with stays
- Grips: VELO VLG-519AD2, 22.2 x 135 mm / 22.2 x 92 mm

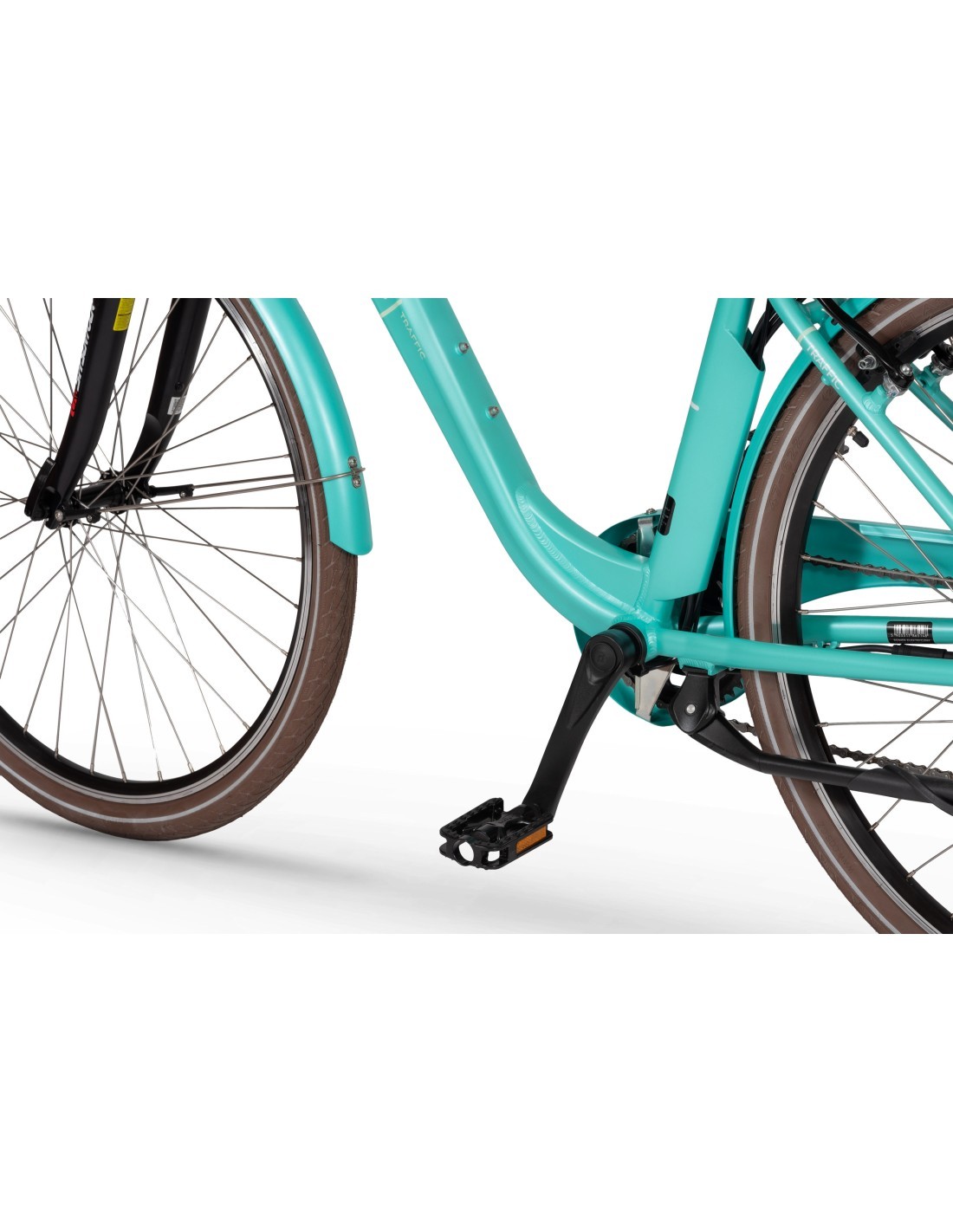

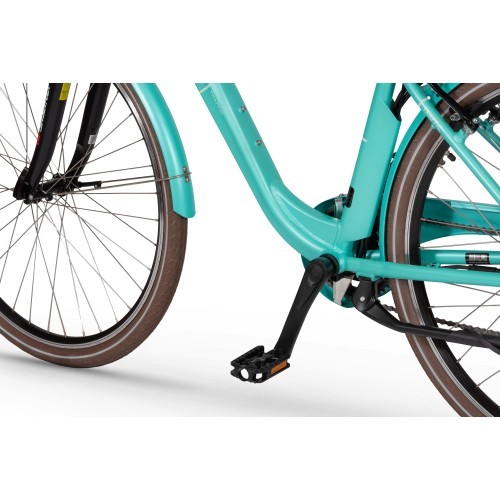

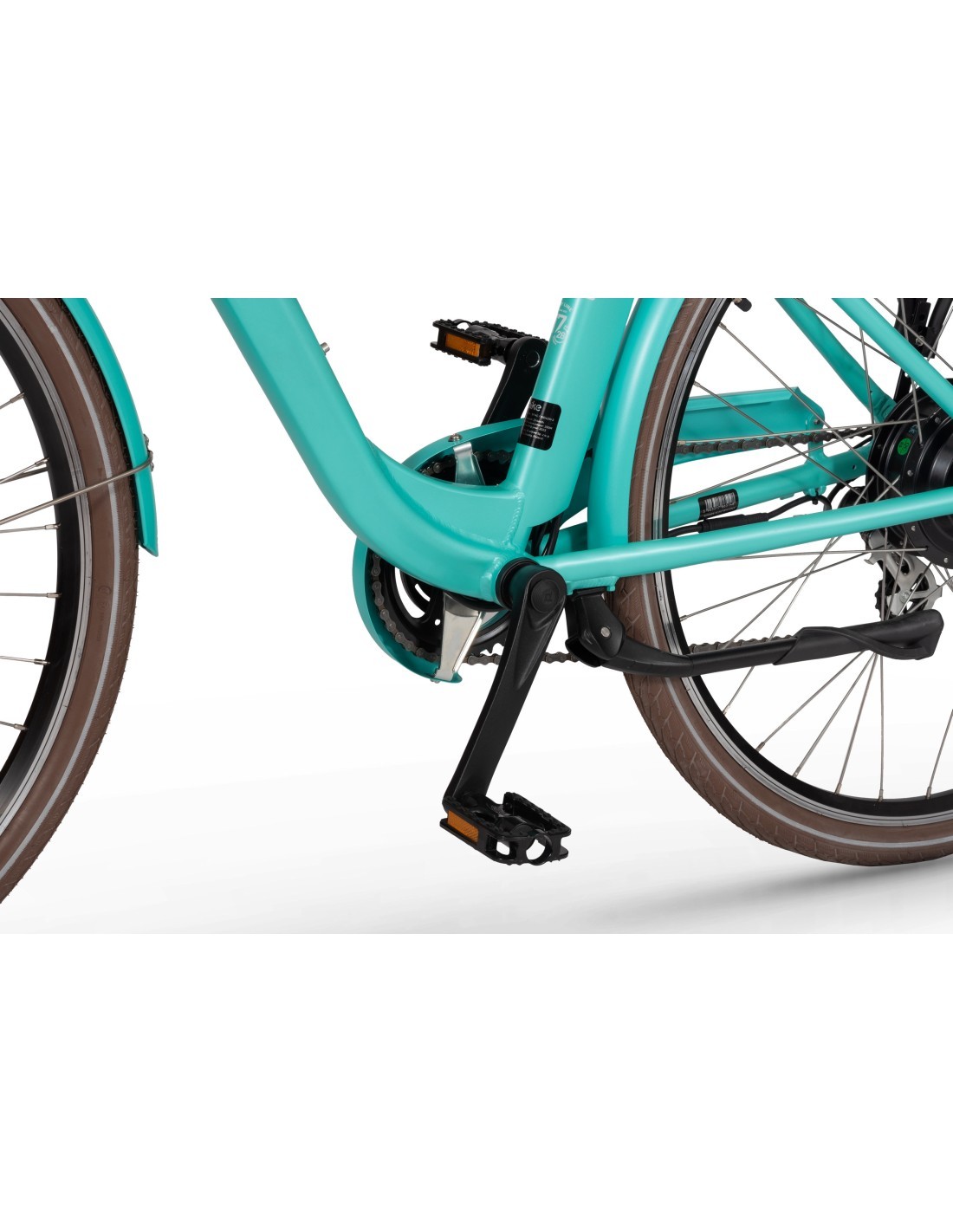

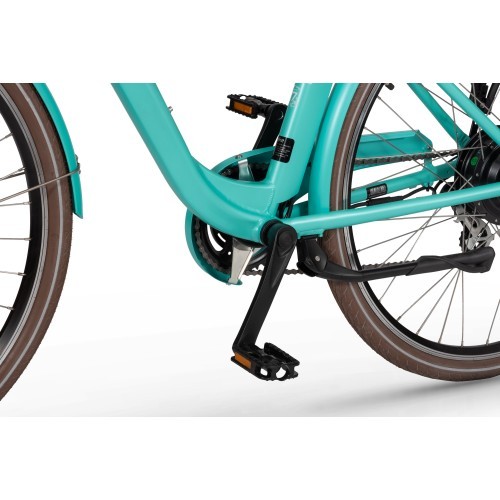

- Kickstand: central, adjustable length, aluminium

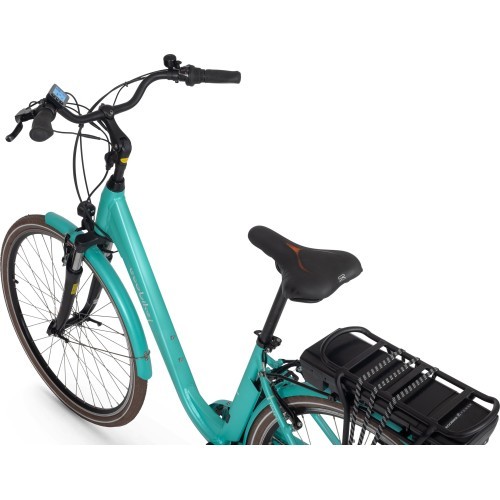

- Rear rack: aluminium, maximum load 25 kg, with rack straps
- Lighting: rear light Spaninga RL1900 XE 36VDC, E-Bike Version / front light Spaninga Kendo XE 6–36V, E-Bike Version
- Frame geometry – top tube length: 600.30 mm
- Head tube length: 161 mm
- Frame size: 432 mm
- Wheelbase: 1105.70 mm
- Seat tube angle: 72.50°
- Head tube angle: 70°
- Maximum bicycle load: 125 kg
- Battery capacity: measured in Wh (watt-hours) or Ah (amp-hours) and directly affects the maximum distance possible with a fully charged battery. Higher capacity means a longer range.
- Range: the approximate distance in kilometres that can be covered with a fully charged battery. It depends on rider weight, battery capacity, weather conditions, terrain (climbs/descents) and the selected motor assistance level. Over several years the battery capacity gradually decreases; this is a normal chemical process in lithium-ion batteries (cell ageing). Incorrect use or modifications may reduce the maximum range.
- Bicycle weight: the total weight of all bicycle components, including the motor, battery, frame parts and accessories. Ecobike bicycles offer an excellent power-to-weight ratio.
- Motor power: the nominal power generated by the electric bicycle motor. The power does not exceed the e-bike power requirements set in many countries.
- Maximum motor power: the highest possible power generated by the electric motor, which may be reached without a speed limiter and may require replacing certain parts to match the correct voltage/current parameters. The user cannot normally select maximum motor power without modifications. If the speed limiter is removed, the vehicle must be registered as an electric moped and the relevant traffic rules for mopeds must be followed. Unqualified modifications may damage the e-bike system; in such cases, neither the manufacturer nor the seller is responsible for losses or injuries caused by modifications.
- Battery service life: the stated number of charge cycles is approximate and may be lower depending on how the battery is used, stored and maintained.
- Maximum speed: the motor can assist up to 25 km/h. Once this limit is reached, the motor switches off and starts again only after the speed decreases. The motor operates only while pedalling and provides pedal assistance. The bicycle has no throttle. Assistance levels and other settings can be selected using the controller on the handlebar.
- Warranty: all EcoBike bicycles have a 2-year factory warranty for the frame and parts. The battery is covered by a 1-year warranty. Other warranty terms are available on our website. For warranty questions, please contact Bikko.
