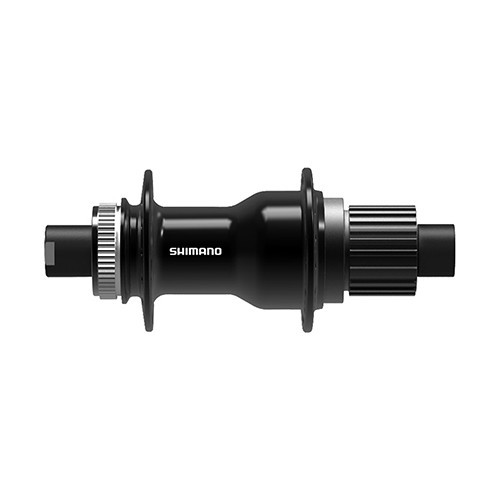

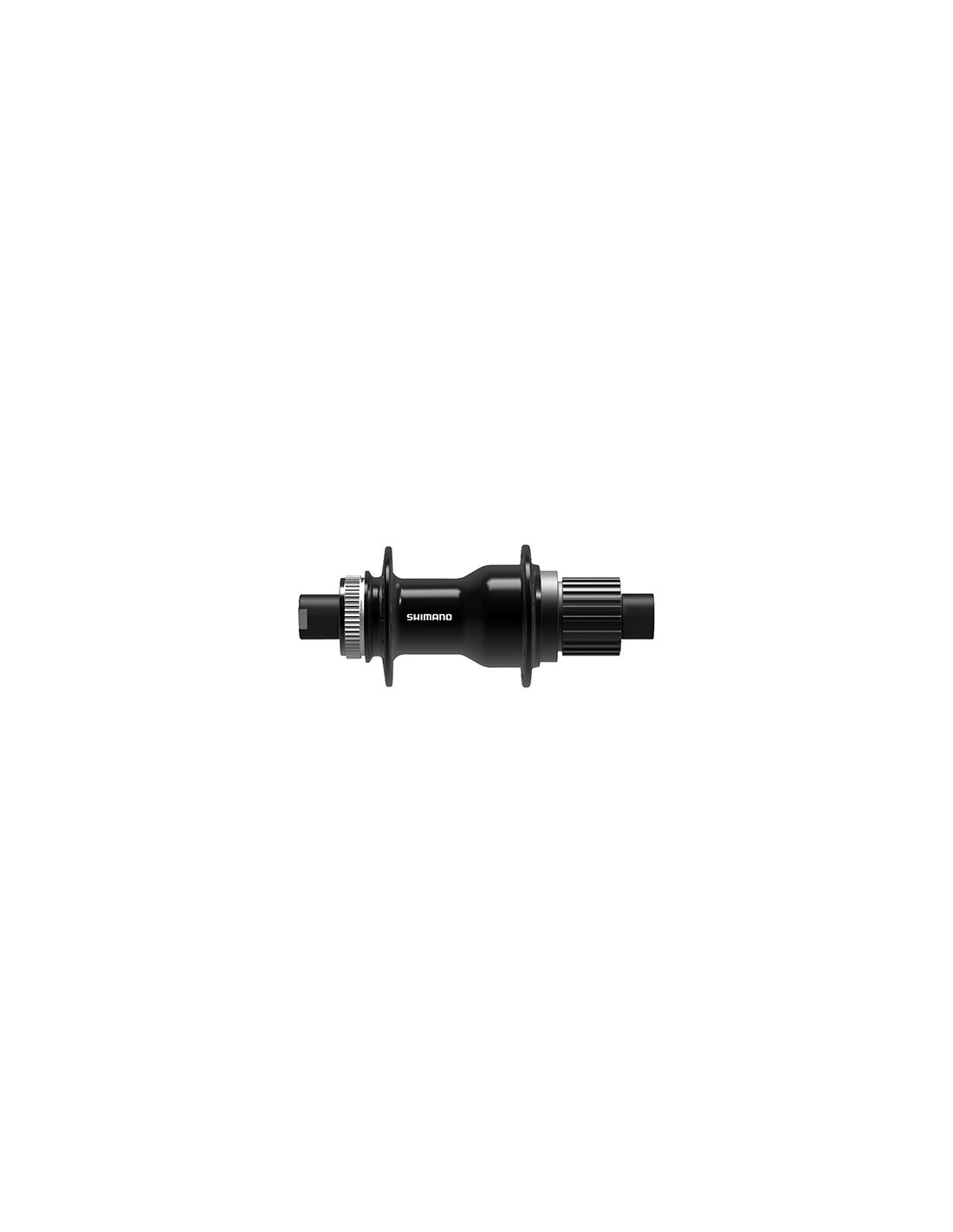

Shimano FH-TC500-MS-B 12-speed Micro-Spline rear hub with Center-Lock mounting, 12x148 mm
The Shimano FH-TC500-MS-B rear hub with Center-Lock disc brake mounting delivers the well-known reliability and performance, adapted for 12-speed Micro-Spline cassettes and built around the Boost E-Thru thru-axle design. A sturdy, easily adjustable and long-lasting FREEHUB rear hub for disc brakes, with high-quality seals.
Features - Shimano FH-TC500-MS-B 12-speed Micro-Spline, Center-Lock rear hub | 12x148 mm
- Easy installation and reliable performance on the trails
- Easy disc brake rotor mounting with spline fitting and lock ring
- Sturdy and lightweight 12 mm E-THRU axle locking system
- Labyrinth and contact sealing
- Smaller spline diameter for a 10T top gear
- O.L.D.: 148 mm
- Compatible with #13 and #14 spokes
- Compatible ONLY with Shimano Micro-Spline cassettes!
Product specifications
- Intended use: MTB, Trekking
- Model: FH-TC500-MS-B
- Freehub body: Shimano 12-speed
- Brake type: Center Lock disc
- Flange distance: 61.45 mm
- Offset: 7.6 mm
- P.C.D.: left 50.5 mm / right 51.5 mm
- Flange diameter: left 59.3 mm / right 60.3 mm
- Bearings: labyrinth and contact seals
- Type: E-Thru Axle Boost
- Axle length: 12x148 mm
- Spoke holes: 32 holes
- Material: aluminium and steel
- Colour: black
