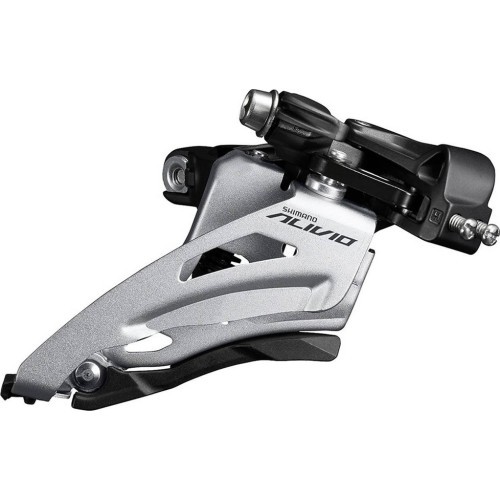

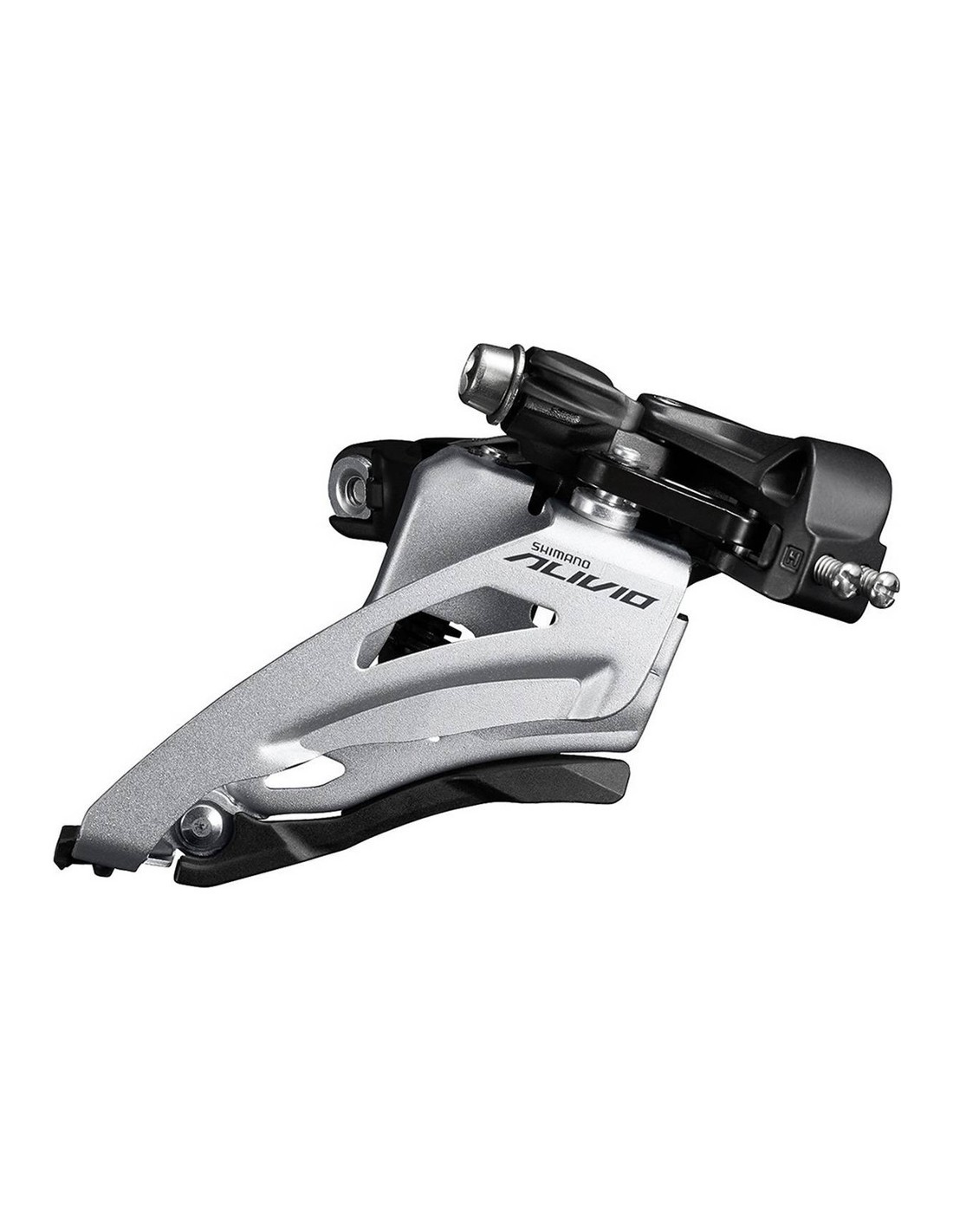

The SHIMANO ALIVIO FD-M3120 2x9-speed front derailleur uses the new SHIMANO SIDE SWING technology, ensuring improved cable routing and light, smooth operation. The new design also increases clearance for large wheels and short chainstays.
- Designed for front double drivetrains
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider pull range reduces chain friction on full-suspension bikes
- Extra-wide 36-22T range
- Compatible with a variety of frames
- Compatible with 2.3-inch tyres on wider rims
- Side-mounted clamp band design
- Side-mounted travel adjustment screw
Technical data:
- Side Swing
- Chain pull type: from the top (Front-Pull)
- Chain stay angle: 64-69
- Compatible chain: CN-HG53 9-speed
- Chain rings: 4
- Mounting: clamp (34.9 mm)
- Gears: 2 x 9
- Top gear teeth: 36T
- Total capacity: 14T
- 48.8 mm chain line
