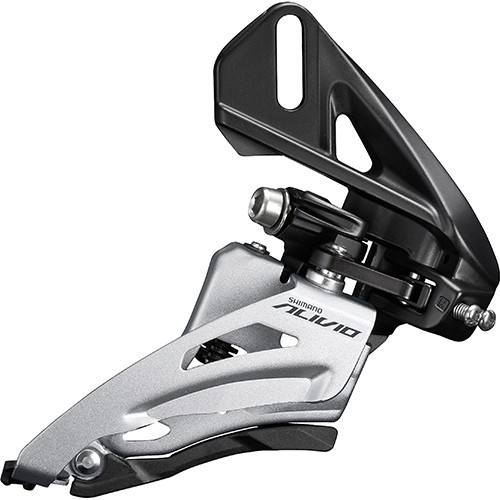

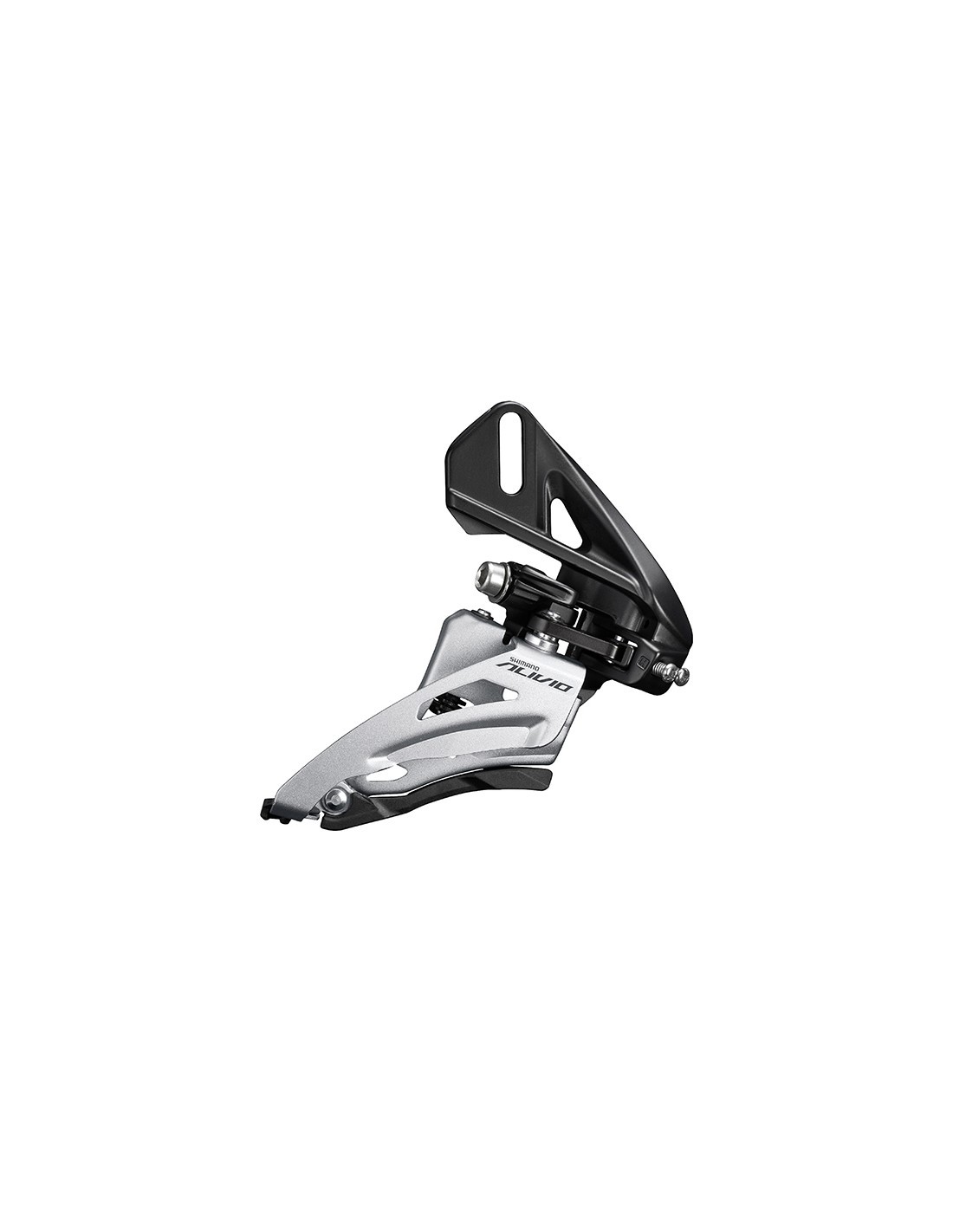

Shimano Alivio FD-M3120-E Front Derailleur // 2x9-speed, 36-22T, E-type mount, Side Swing

Shimano ALIVIO FD-M3120-E 2x9-speed front derailleur with Side-Swing

The SHIMANO ALIVIO FD-M3120 2x9-speed front derailleur uses the new SHIMANO SIDE SWING, which ensures better cable routing and light, smooth operation. The design also increases clearance for large wheels and short chainstays.

• Smooth shifting thanks to the Side-Swing mechanism
• For a front double chainring set
• Smooth and quiet front shifting on the trail
• More powerful outward shifting
• Wider pull range reduces chain friction on rear-suspension bikes
• Extra-wide range with a front double 36-22T chainring
• Wide frame-mount compatibility
• Compatible with 2.3-inch tires on wider rims
• Chainline: 51.8 mm

Technical information:

• Use: MTB
• Group: ALIVIO M3100
• Model: FD-M3120-E
• Chain pull type: from the top (Front-Pull)
• Front gears: 2
• Rear gears: 9
• Top gear teeth: 36T
• Total capacity: 14T
• Compatible chain: HG 9-speed
• Chainstay angle: 64-69°
• Chainline: 51.8 mm (148 mm Boost)
