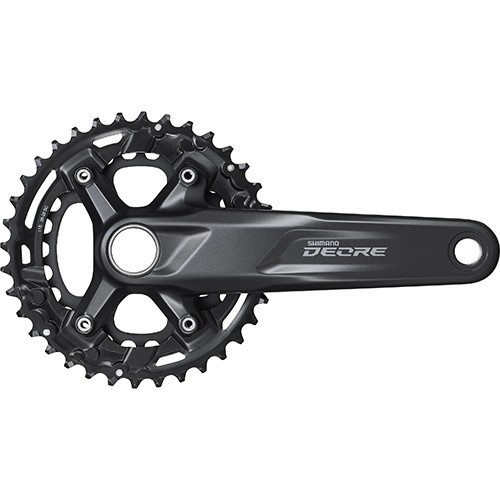

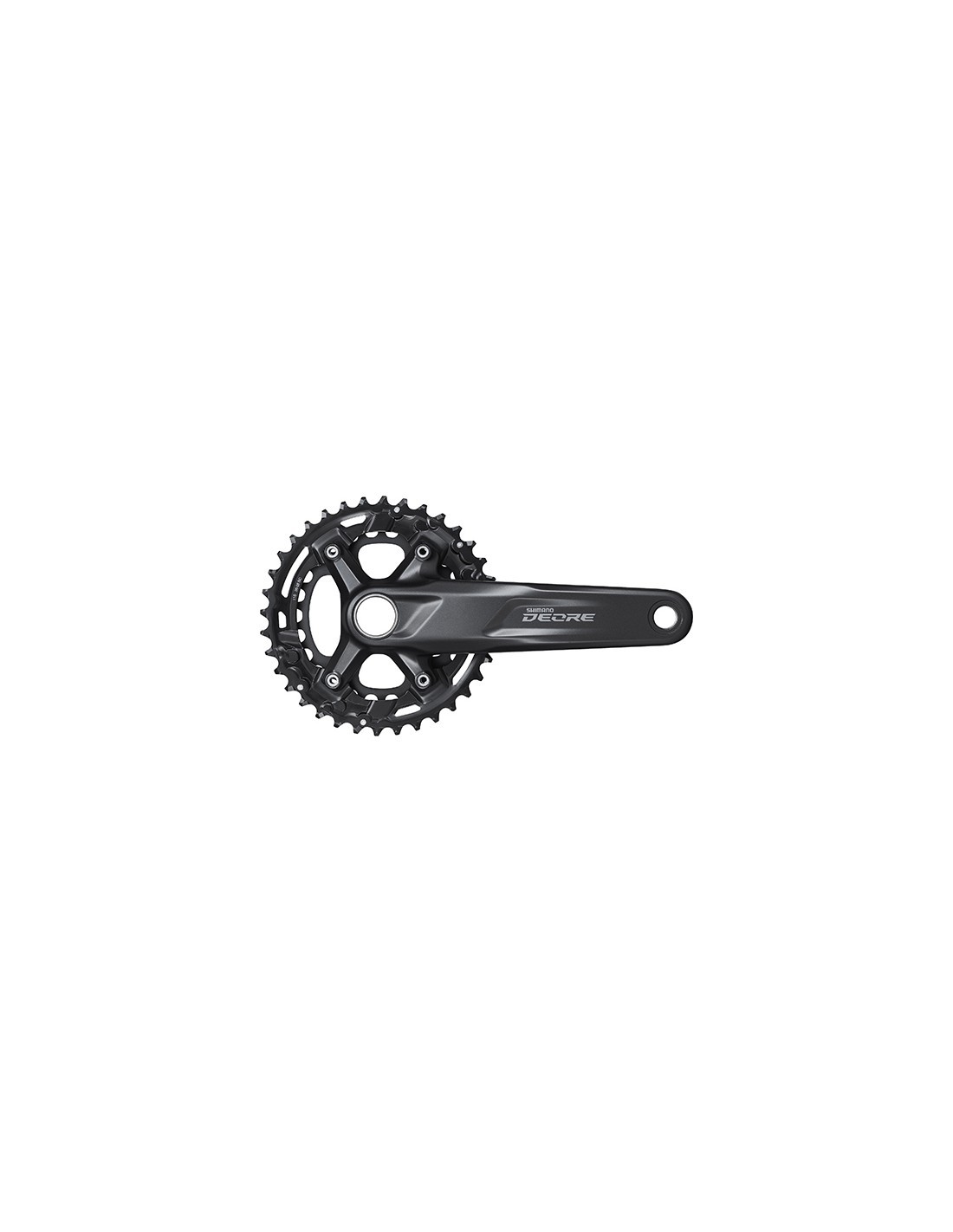

Shimano Deore FC-M5100 // 36-26T, 2x11 speed
- Shimano Deore - MTB chainset - 2-piece chainset - Q-factor: 178.5 mm - Chain line: 48.8 mm
- The Shimano Deore FC-M5100-2 mountain bike front chainset ensures precise and reliable 2x11 speed shifting. This 2-piece chainset has a 36-26T gear combination and a 48.8 mm chain line.
- The 2-piece chainset increases the mechanism's rigidity while reducing weight, and efficiently transmits pedalling force
- An especially wide range with a front double 36-26T
Specification:
- Model no.: FC-M5100-2
- Series: DEORE M5100 series
- 2-piece chainset
- Chainring combination (gradation): 36-26T
- Compatible bottom bracket type: External
- Crank fixing bolt included
- Crank length (mm): 175 mm
- Number of gears and gear speeds: 4
- Optional chain guard: Without chain guard
- Recommended bottom bracket: BB-MT500-PA
- Recommended bottom bracket: Threaded (standard) SM-BB52
- Threaded bottom bracket shell width (mm): 68 mm
- Threaded bottom bracket shell width (mm): 73 mm
- Q-factor (mm): 178.5 mm
- Chain line (mm): Chain length (mm): 48.8 mm
- Compatible chain: HG-X11 11-speed
- P.C.D. (mm): 96/64
- Rear speeds: 11
- O.L.D. QR/Nut (mm): 135 mm
- O.L.D. Thru (mm): 142 mm
- Material: Steel
